- Named after Maurice Karnaugh

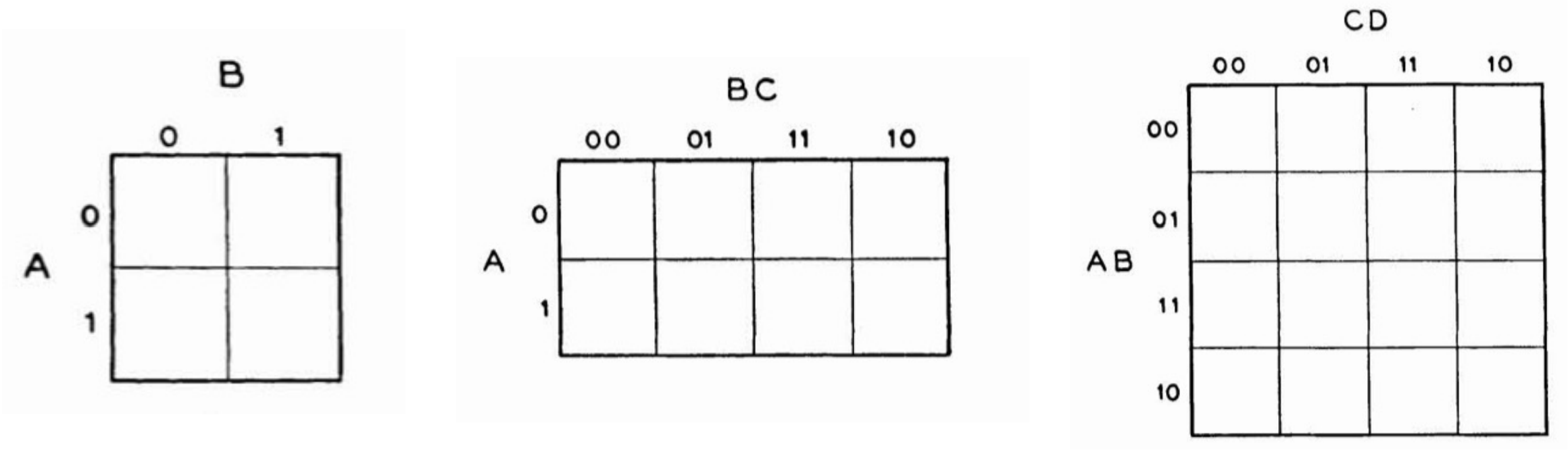

- K-Map Example Image
- The table gives you all possible values for the number of bits
- 2 input map
- K-Maps minimize terms graphically
- Fill up the k map by the truth table
- each neighbor has one term where a single variable switches from positive to negative, this is how we can remove the term
- Each adjacent 1 is ANDed together, the terms are then summed
- Every 1 must be circled at least once
- Every circle must span a power of 2
- each circle must be as large as possible
- A circle may wrap around the edges
- for example in the second image, 100 and 110
- Can utilize “Don’t Cares” Logic to Gates
- Want to enlarge the circles to include the Xs to include more terms.
- However if an additional circle will grant no additional 1s then don’t bother circling the x
